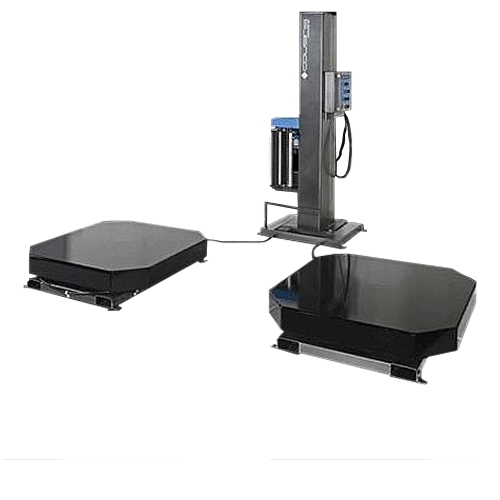

Cousins HP-SW Dual Turntable Stretch Wrap Machine
Cousins HP-SW Dual Turntable Stretch Wrap Machine

Cousins Part# SWITCH HP-SWDT

Increases production. Alternating turntables allows you to place and wrap a pallet load without having to first remove the one just previously wrapped. This is the case with the single turntable. Forklift and pallet jack accessible.

In order to help you purchase the very best product for your application, and obtain the lowest pricing and shipping rates to your location, we recommend that you call us at 888.998.8766 and speak with one of our equipment technicians.

It is important to us that you receive the best solution at the best price.



Product Code: CHP-SWDT


Additional Information


Production Speed

  • 1-35 loads per hour (Single Turntable)
  • NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time
Capacity
  • Maximum load weight: 4,500 lbs dynamic - 10,000 lbs static
  • Maximum load size to safely clear other turntable: 58" W x 58" L (82" load diagonal)
  • Maximum load size to remain inboard of the turntable: 48" W x 48" L (68" load diagonal)
  • Maximum load height: 80" H (plus up to 4" top overlap)
Turntables
  • 48" octagonal 5/16" thick formed steel plate turntable (qty. 2 for dual turntable)
  • 4 point caster support system
  • Turntable height less than 11" from floor
  • ANSI # 50 direct chain drive c/w chain tensioner
  • 3-12 RPM rotational speed c/w soft start acceleration
  • 1/2 HP AC variable speed motor (qty. 2 for dual turntable)
  • Final revolution deceleration and positive stop alignment
  • Front and back forklift ports for easy movement
  • Accu-Count exact turntable positioning system for additional film savings!
Film Carriage Elevator
  • 1/2 HP AC variable speed motor
  • ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device
  • Maintenance free carriage guidance system
Film Delivery System
  • NEW Super Rapid Thread II ™ 20" capacity pre-stretch film carriage
  • Special Film Threading Device - Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load.
  • 1/2 HP AC variable speed motor
  • Fully electronic dynamic dancer corner compensation
  • 33% to 313% fixed stretch capability
  • Pre-stretch ratio variable using easy sprocket change
  • Carriage Descent Obstruction Safety Shut-Off Device
  • Rapid Thread ™ Safety Door with auto power cut-off switch
  • Side mounted film carriage for operator convenience and safety
  • Superior film-to-roller contact area
  • Lifetime warranty on pre-stretch rollers
Electrical Input Requirements
  • 115 Volts 1 Phase 60 Hz 15 Amps
Control Features
  • Electronic controls with LCD operator interface
  • Power Off - On - Reset switch & Power On indicator light
  • Single button Auto Wrap Cycle Start/Pause
  • Cycle Pause for applying top sheets
  • Reinforce Wrap control for mid-wrapping
  • Base or Top Wraps First program
  • Up Only or Up/Down wrap program
  • Emergency Stop button
  • Turntable Jog button
  • Turntable Left/Right switch (for dual turntable systems only)
  • Film Carriage Lower & Raise buttons
  • Film Tension (Force-to-Load) control
  • Separate film carriage raise & lower speed controls
  • Operator programmable turntable speed control
  • Triple beam automatic load height detection sensor for dark or shiny loads (qty. 2 for dual turntable system)
  • Separate 1 to 12 revolution top & bottom wrap control
  • Selectable Reduced Film Tension parameters for wrapping top and/or bottom of load
  • A - B - C wrap program selector with capability to input and store unique wrapping parameters for each program
Structural Features
  • All structural steel construction
  • Forklift truck portable base structure design - lifting tubes included for front and rear access
  • Structural steel tube machine tower with sheet metal covers
  • Electro-static powder coated paint finish
