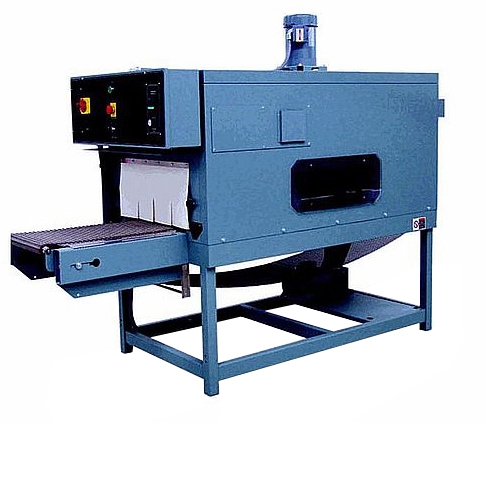

Shanklin Extended Single Chamber T-71 Shrink Tunnel
Shanklin Extended Single Chamber T-71 Shrink Tunnel

High speed wrappers present multiple shrink challenges. Shrinking high volume, heat absorptive surfaces and/or irregular shaped packages is what the Shanklin T-71/T-81 Shrink Tunnel has been designed to perform with ease. A longer single chamber increases shrink capacity at higher speeds, and the fully controllable air temperature and velocity allow you to customize shrinking conditions to the application.

In order to help you purchase the very best product for your application, and obtain the lowest pricing and shipping rates to your location, we recommend that you call us at 888.998.8766 and speak with one of our equipment technicians.

It is important to us that you receive the best solution at the best price.



Product Code: ST-71


Additional Information VIDEO Demonstration

Features:
  • Flexible Features a longer (60") single chamber tunnel to facilitate increased shrinking capacity at higher speeds.
  • Fast Conveyor speeds from 25 to 150 feet per minute!
  • Dependable Powerful hot air system keeps pace with the most demanding use.
Specifications:
  • Tunnel Passage: 10' high x 22" wide x60" long
  • Tunnel Size: 36" wide x 68 1/2" high x 92" long
  • Conveyor Height: 29" minimum, 42" maximum
  • Conveyor Lengths: 92" long standard
  • Power: 230 volts, 3phase, 53 amps, 12.1 KVA Max. (6.1 KVA Normal Usage)
  • Small Product Transfer Infeed Roller: Standard
  • Conveyor Speeds: Variable from 25 to 150 ft./min.
  • Blower Motor: 1 1/2 HP, 3 Phase
  • Heaters: Multiple finstrip (Encased Element)
  • Temp. Controller: Digital Readout Solid State Controller
  • Controls: Main Power Circuit Breaker, Conveyor Start/Stop, Tunnel On/Off, Conveyor Variable Speed, Main and Top Air Velocity
  • Safety Features: Motor Overload Protection, High Temperature Limit Switch, Main Power Circuit Breaker, Emergency Stop Switches

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 1 Write a review »

  0 of 0 people found the following review helpful:

5 of 5 Very good tunnel. Fast and low maintenance! July 6, 2015
Reviewer: Harry Pellatier from Macon, GA
Looked at a number of products and settled on the T-71 based on recommendations by the BPS crew. We needed something faster then what we've been using. This Shanklin was just what we needed.
