Orion Flex CTS Conveyorized Two Station Automatic Stretch Wrapping Machine
Orion Flex CTS Conveyorized Two Station Automatic Stretch Wrapping Machine

CALL US FOR A BETTER PRICE! WE WILL NOT BE BEAT!

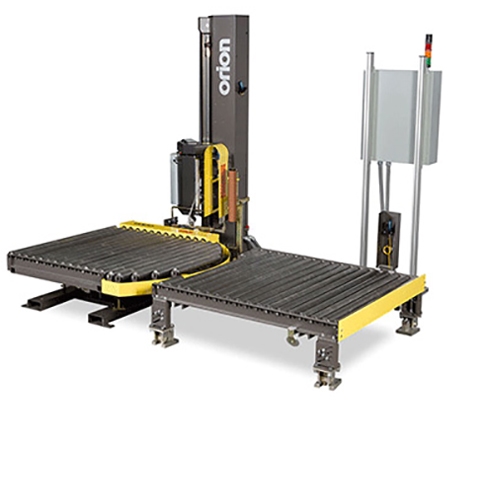

The new Orion Flex CTS is a Conveyorized Twin Station stretch wrapping machine designed to increase fork lift efficiency and reduce load handling times by providing a powered conveyor turntable and a gravity conveyor section used as a staging platform for wrapped loads waiting to be picked up.

In order to help you purchase the very best product for your application, and obtain the lowest pricing and shipping rates to your location, we recommend that you call us at 888.998.8766 and speak with one of our equipment technicians.

It is important to us that you receive the best solution at the best price.


Product Code: ORFLEXCTS


Additional Information

Features
  • Motor Driven Powered Turntable Conveyor (No load "pushing"!)
  • Easy to use Touch-Screen HMI (No maze of switches and push-buttons!)
  • Separate Top / Bottom Wrap Counts adjustable from 1-9
  • Separate Up / Down Film Carriage Speed Controls (No single speed control!)
  • Automatic Film Force-to-Load Control (No load cells or strain gauges!)
  • Automatic Load Height Detection Photocell
  • Lanyard Switch Included for Remote Cycle Start (Wireless Remote Optional)
  • Automatic Film Clamping and Cutting (No operator needed!)
  • Film Tail Press-to-Load (Helps prevent film unraveling!)
  • Film Roping "Curls" Film to Lock Load To Pallet
  • DURABILITY features on the Flex CTS
  • Precision Ring Bearing Turntable Support (No Casters!)
  • Direct Chain/Sprocket Turntable Drive (No belt!)
  • Industrial PLC Controller (No proprietary microprocessor!)
  • AC Motors (No DC motor brushes!)
  • Power Track Film Carriage Cable Carrier
  • Structural Steel Tube Base Frame
  • SAFE interaction features on the Flex CTS
  • Insta-Thread Film Carriage, "Drop-In" Film threading
  • Film Carriage Down Obstacle Detection, stops drive
  • Film Carriage Drop-Lock device, prevents free-falling
  • No Lube Belt Lift/Lower system with "Drop-Lock" Technology
  • Multi-Point UHMW Precision Carriage Guidance System
  • Insta-Sense Film Out/Broken Sensing Logic
  • Electronic Film Tension Control Adjustment
  • Easy "Drop-In" Film Threading Design

OPERATIONAL SEQUENCE

1. Pallet load is set onto the loading zone (turntable conveyor) via forklift
2. Driver backs away from wrapper and pulls lanyard switch to start the wrap cycle
3. Once the wrap cycle is complete, the load is transferred onto the exit pick-up station
4. Driver sets another load onto the turntable, then picks up the wrapped load

STANDARD SPECIFICATIONS
Capacities
  • Maximum Load Size 48"W x 48"L x 72"H
  • Minimum Load Size 36"W x 36"L x 15"H
  • Weight Capacity up to 4,000 Pounds
  • Stretch Film 20" Wide, up to 110 gauge

Utilities
  • Maximum Load Size 48"W x 48"L x 72"H
  • 115/1/60, 20 Amp Electrical Service
  • 80 PSI clean/dry Compressed Air @ 3 CFM
  • Turntable Structure, Support & Drive
  • Precision Ring Bearing Turntable Support System
  • Up to 15 RPM Variable Speed with adjustable Soft-Start
  • Heavy Duty Direct Chain & Sprocket Drive
  • AC Drive Motor with Variable Frequency Drive
  • Electronically Adjustable Acceleration/Deceleration (Soft Start)
  • Adjustable Film Roping Bar - "Curls" Film into Rope to Lock Load to Pallet
  • Automatic Film Tail Treatment
  • Film Tail Clamp, Hot-Wire Film Cutter, Film Press-to Load System

Control Features
  • Easy to use Touch-Screen HMI Panel Display for easiest operator use
  • Industrial Programmable Logic Controller (Non-Proprietary)
  • Industrial Switches for E-Stop & Main Power
  • Separate Top and Bottom 1-9 Wrap Count Selectors
  • Separate Film Carriage Up/Down Speed Controls
  • Photocell for Automatic Load Height Detection
  • NEMA 12 Dust/Splash-Proof Control Enclosure
  • Digital Control Settings for motor speeds
  • 24 Volt DC Controls
  • Film Carriage, Stretch & Delivery
  • 20" Orion Insta-Thread Powered PreStretch Film Delivery System
  • 260% Standard Pre-Stretch (Sprocket changeable from 100% to 300%)
  • AUTOMATIC Film Force-to-Load Control works like Cruise Control
  • "Shock Absorber" Film Dancer Bar with Non-Wearing Sensor
  • Precision Polyurethane Pre-Stretch Rollers for Consistent Film Yield
  • AC Drive Motor with Variable Frequency Drive

Conveyor Features
  • Power Driven Turntable Conveyor
  • One 5' Gravity Unloading Conveyor
  • 2.5" Diameter Rollers on 3.25" Centers
  • 18" Height to Top of Rollers x 52" Conveyor Width
