EAM MOSCA TR-Connect SoniXs
EAM MOSCA TR-Connect SoniXs

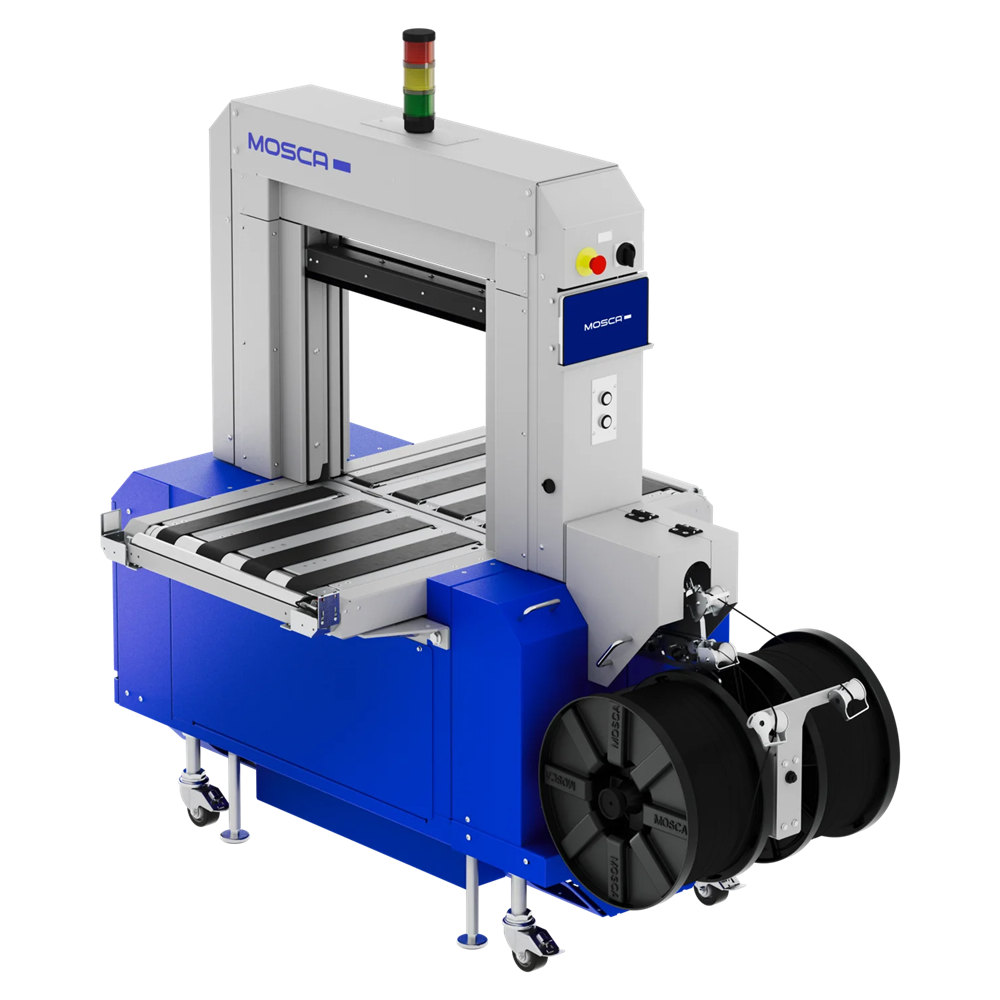

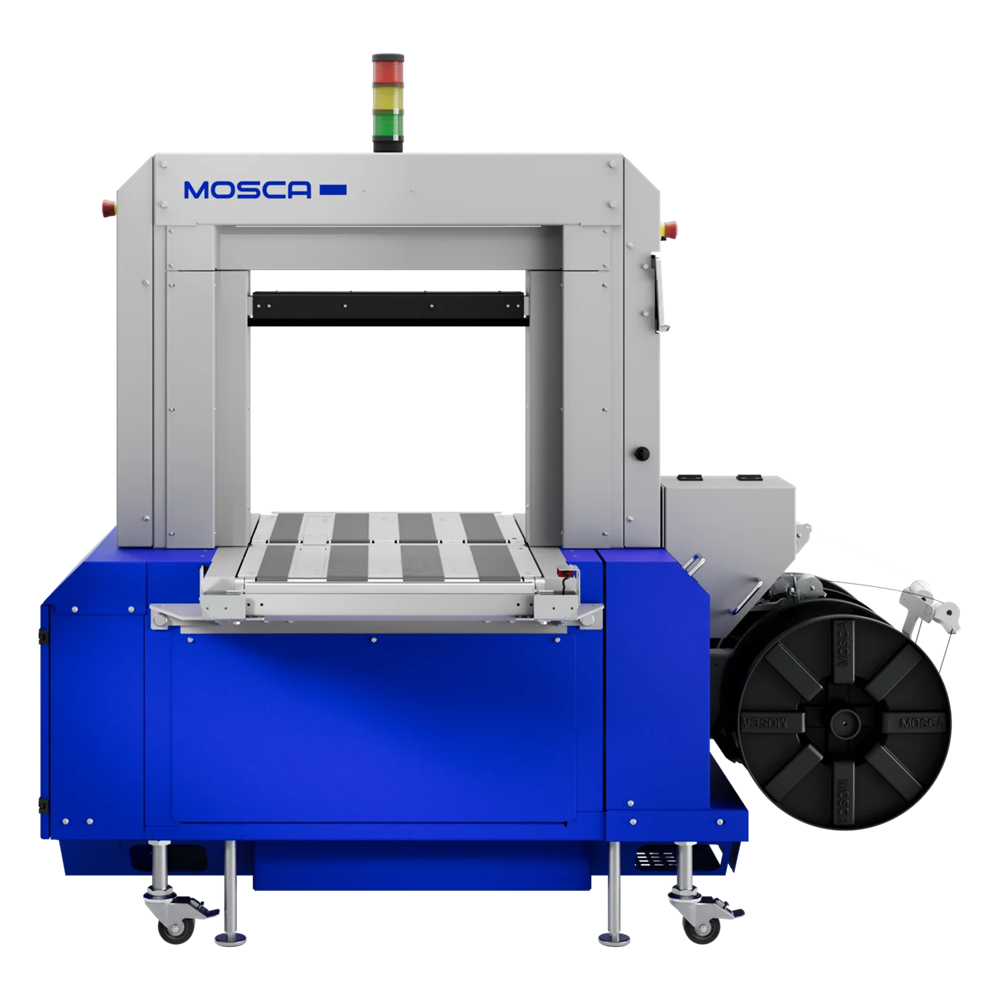

Alternative Views:
The TR-Connect SoniXs® is a fully automatic strapping solution designed to serve a wide range of applications. It features an integrated WebHMI system that provides direct access to important machine performance data, including availability, quality, and output. The TR-Connect SoniXs® allows users to define and save optimized machine settings tailored to specific packages. Additionally, it can automatically adjust product recipes using sensors or interface signals.

For advanced digital applications, the optional Mosca Digital package enables users to check machine status via mobile devices.

In order to help you purchase the very best product for your application, and obtain the lowest pricing and shipping rates to your location, we recommend that you call us at 888.998.8766 and speak with one of our equipment technicians.

It is important to us that you receive the best solution at the best price.


Product Code: EAM-TR-CONNECT-S


Additional Information

Features:
  • SoniXs ultrasonic sealing unit in standard-7 version
  • Easy accessibility and tool-free dismantling of strap path components
  • Potential-free contacts to upstream and downstream machines
  • Bundle positioning via increments by metrical input of the strapping positions
  • Flexible product processing through alternatively sealing unit position (central or 140 mm from left)
  • Infinitely adjustable conveyor speed from 0.1 - 1.0 m-s
  • Best product processing by possible assignment of package-depending machine settings via product recipes
  • ATR - Automatic cycle rate regulation
  • Package including further languages, strapping patterns and positions incl. multistrap
  • Intuitive user guidance via Mosca WebHMI. Division into different user groups
  • CE marking incl. conformity declaration
  • Extremely low energy consumption
  • Sealer position center or offset, depending on frame size
Specs:
  • Production Rate: Up to 45 units/min (600 x 600 mm)
  • Electricity
    • Voltage: 100 - 240 V, 50/60 Hz, 1L+N+PE
    • Power: 0.3 kW
  • Weight: 450 kg (992.08 lbs)
  • Frame Size
    • Dimensions:
      • 500 mm (19.69 in) x 400 mm (15.75 in)
      • 500 mm (19.69 in) x 600 mm (23.62 in)
      • 600 mm (23.62 in) x 600 mm (23.62 in)
      • 800 mm (31.50 in) x 600 mm (23.62 in)
      • 800 mm (31.50 in) x 800 mm (31.50 in)
      • 1000 mm (39.37 in) x 1000 mm (39.37 in)
    • Track height:
      • 400 mm (15.75 in)
      • 600 mm (23.62 in)
      • 800 mm (31.50 in)
      • 1000 mm (39.37 in)
  • Conveyors
    • Height: from 700 mm (27.56 in) to 870 mm (34.25 in)
  • Straps
    • PP (Polypropylene):
      • Strap width: 5 mm (0.20 in) - 12 mm (0.47 in)
      • Strap thickness: 0.40 mm (0.02 in) - 0.63 mm (0.02 in)
Options:
  • Access to WebHMI reduced to a minimum
  • Mosca Digital package
  • Tablet with WLAN Modul for a comfortable use of the WebHMI
  • Interface OPC UA
  • Automatic adjustment of the strap tension by package height detection
  • Lateral product guiding
  • Fully automatic strap coil change by double dispenser
  • Product transport via roller table
  • Energy-efficient electro-mechanical package stop
  • Energy-efficient electro-mechanical hold-down device
  • Table extension up to 60 mm, 110 mm or 220 mm
  • Safety pop-up rollers in the inlet and outlet
  • Automatic machine adaptation to package dimensions to optimize the strapping process via sensors or interface signals
  • Variably assignable signal exchange in infeed and outlet
  • Special conveying heights
